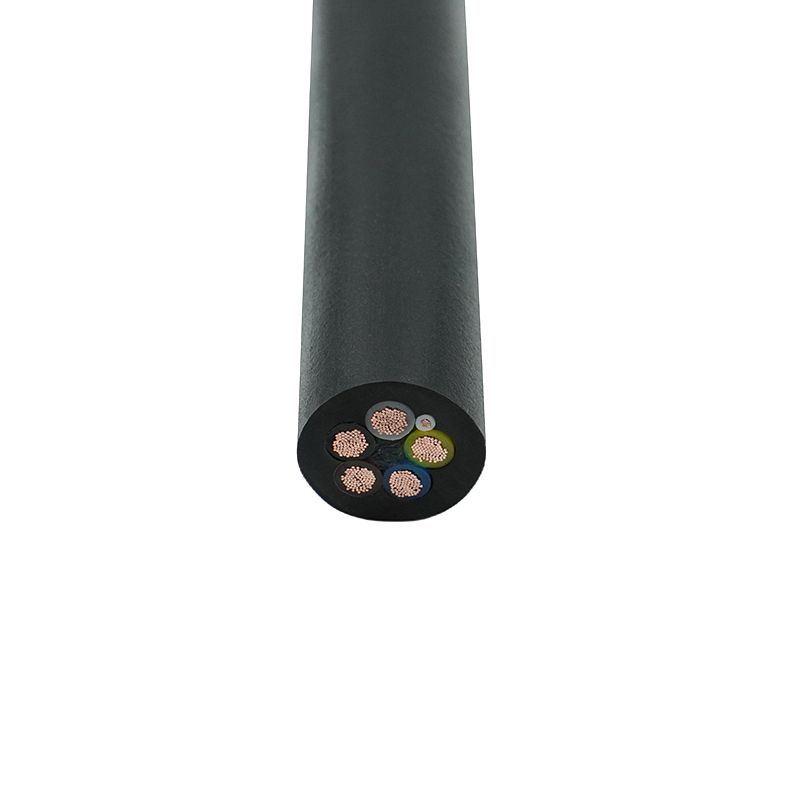

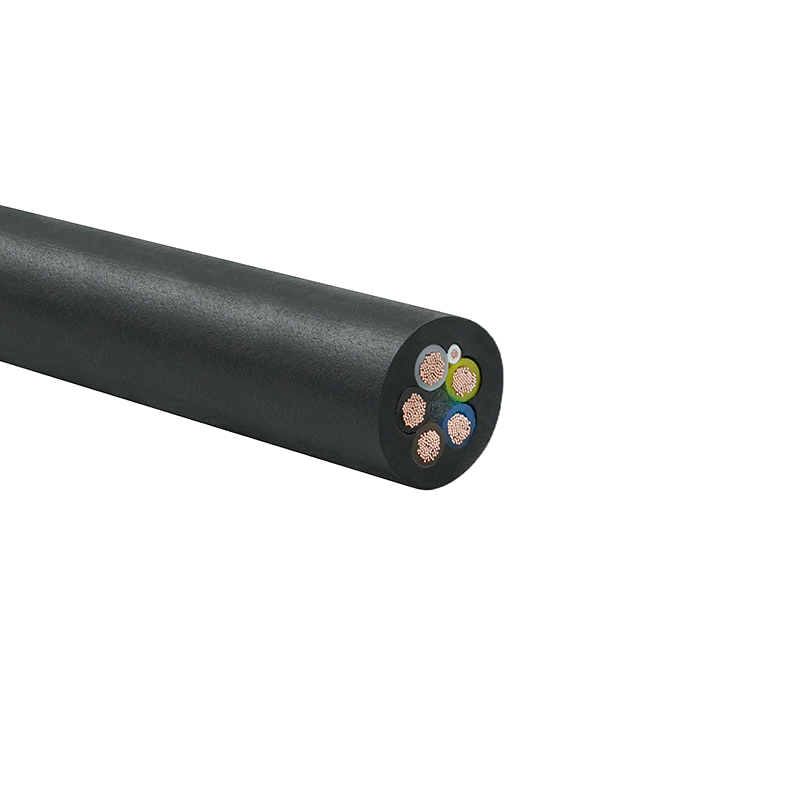

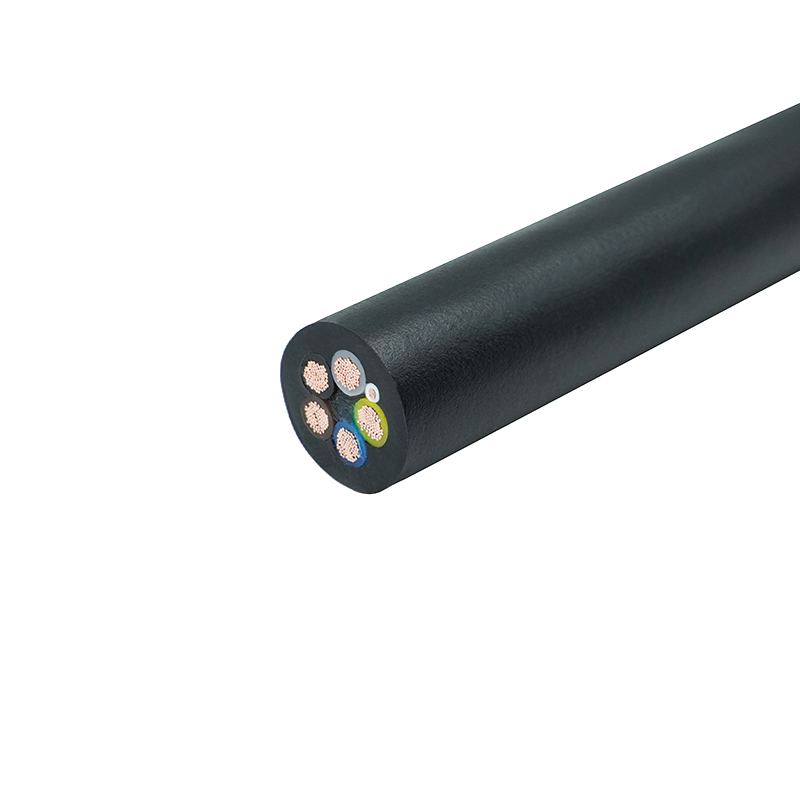

High-Current EV Charging Cable for Charging Piles (5×6+1×0.5) (EVC-5X6+1X0.5)

Product Positioning: A dedicated "power + signal" integrated transmission cable for new energy terminal equipment, mainly suitable for scenarios such as charging piles and energy storage systems that require simultaneous power supply and safety monitoring. It is a key component balancing equipment wiring efficiency and safety redundancy.

Prev：New Energy Power Transmission Connection Cable
Next：EV Charging Cable for Electric Vehicle Charging Guns and Stations (3×6+1×0.5)

Product Information

Contac Us

About Us

Product Information

Product Features:
Structure Matching Dual-Function Requirements: Adopts an integrated design of power cores, signal cores, and grounding wires. The main wires undertake charging or energy storage power supply, while the auxiliary wires are dedicated to grounding protection or status monitoring, eliminating the need for additional wiring. It complies with new energy cable standards such as EN 50620 and IEC 62893.
Comprehensive Environmental Resistance: Insulation and sheaths mostly use weather-resistant materials such as TPE, XLPO, FEP, and TPU, with a high and low temperature resistance range of -40℃~105℃. They can withstand sunlight, rain, and snow for outdoor charging piles and closed high temperatures in indoor energy storage cabinets. Meanwhile, they have oil resistance and hydrolysis resistance, adapting to complex industrial environments.
Compliant Safety Performance: Passes vertical flame propagation tests (e.g., UL VW-1). Some models adopt a low-smoke halogen-free formula with an oxygen index ≥30%, producing low-toxicity smoke when exposed to fire. Additionally, the insulation layer has low dielectric loss, with an insulation resistance ≥100MΩ・km at 20℃, ensuring electrical safety during charging and energy storage.

Application Scenarios:
Public and Home Charging Piles: Connects the main body of the charging pile to the charging gun, simultaneously transmitting charging current and monitoring signals such as gun head temperature and connection status.
Energy Storage Battery Systems: Used for parallel power supply of battery modules in energy storage cabinets, and paired with grounding protection wires to achieve equipotential connection between the cabinet body and the negative electrode of the battery, avoiding leakage risks.
Portable Charging Equipment: Serves as the connection cable between mobile charging power supplies and new energy vehicles, realizing both power transmission and safety signal feedback.
