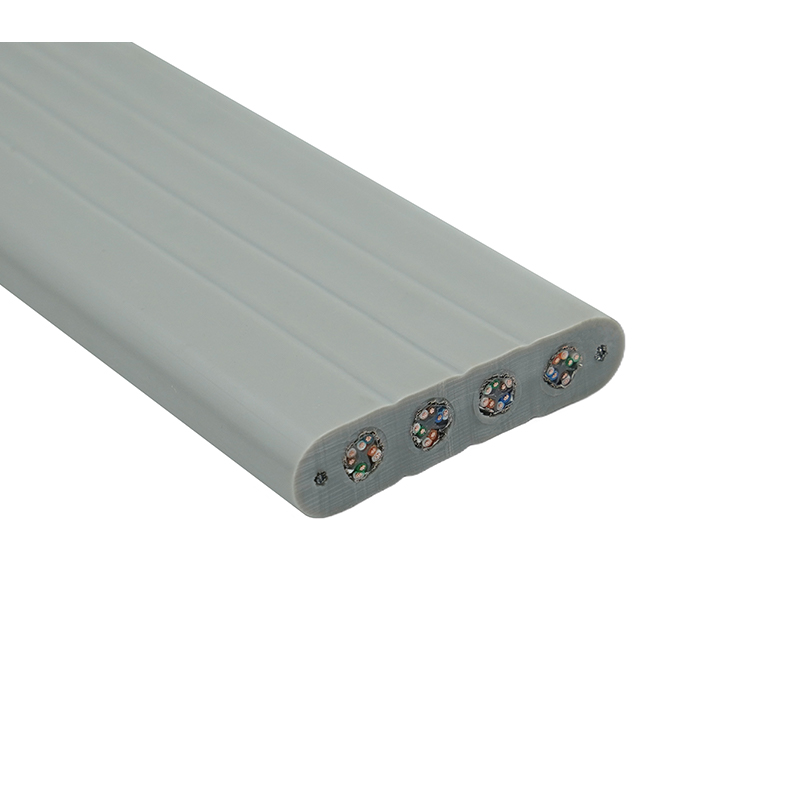

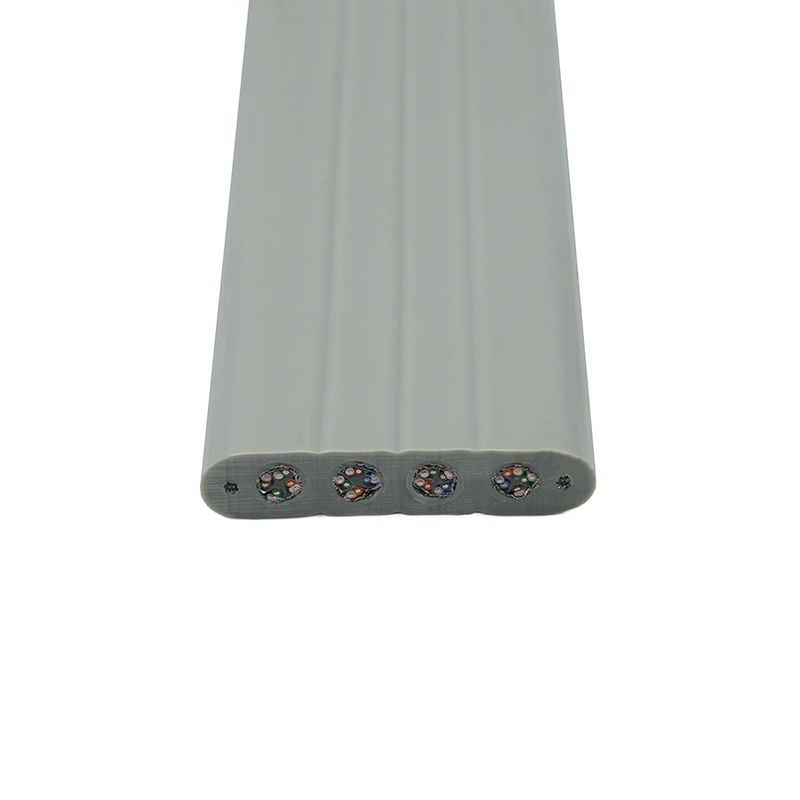

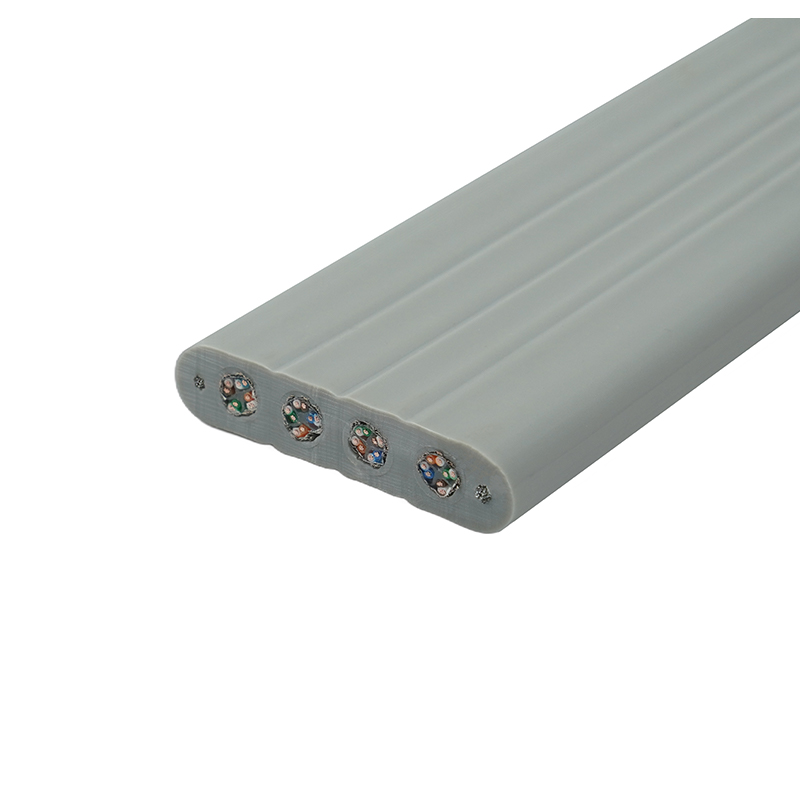

Elevator Flat Cable with Steel Wire and 4 Cat6 Patch Cables (TVVBG-4XCAT6)

Product Positioning: A core cable for "full-link digitalization" of high-end smart elevators, adapting to the integrated system of smart buildings.

Prev：Copper Core PVC Insulated PVC Sheath Shielded Elevator Flat Cable
Next：Elevator Flat Cable with Steel Wire and 2 Cat6 Patch Cables

Product Information

Contac Us

About Us

Product Information

Product Features:
Four-Link Full-Scene Coverage: Integrates 4 sets of high-performance CAT6 Category 6 network cables. Each set adopts a double shielding and independent isolation layer design, which can simultaneously support 4 types of signal transmission including Gigabit Ethernet, elevator-specific control bus (such as Modbus), high-definition video, and wireless AP, realizing in-depth integration of elevators and building smart systems.
Stable Network Performance: The CAT6 network cable adopts a stranded structure of multi-strand fine copper wires (7/0.16mm), combined with double shielding (full coverage) of aluminum foil + copper braid. In the strong electromagnetic environment of elevator motors and inverters, the signal transmission bit error rate is <0.001%, supporting Gigabit Ethernet transmission within 90 meters and 10Gbps short-distance transmission within 50 meters.
Strong Structural Compatibility: The network cable unit and power core are separated by an isolation layer to avoid interference of power current on network signals. At the same time, it retains the flat structure and steel wire reinforcement, adapting to the installation size of the traveling frame of existing elevators without hardware modification.

Application Scenarios:
Ultra-High-Rise Smart Building Elevators: For landmark buildings with more than 50 floors. The elevator needs to transmit traction machine inverter control signals (Modbus bus), 4K monitoring videos, passenger WiFi data, and energy consumption statistics data at the same time. The 4 sets of network cables work independently to ensure no delay in system response.
Elevator IoT in Smart Parks: Connects to the elevator cloud platform to realize full-scene data interaction such as equipment status monitoring (vibration, temperature), passenger flow statistics (camera AI analysis), remote control (such as elevator control call), and emergency rescue (one-click alarm + video linkage).
High-End "Smart Elevator Control": The network cables are used for face recognition call systems, reserved elevator control, in-elevator interactive screens (room service calls), and background scheduling systems respectively.
